REBEL 300 2023 · F-16 FUEL TANK/FUEL PUMP

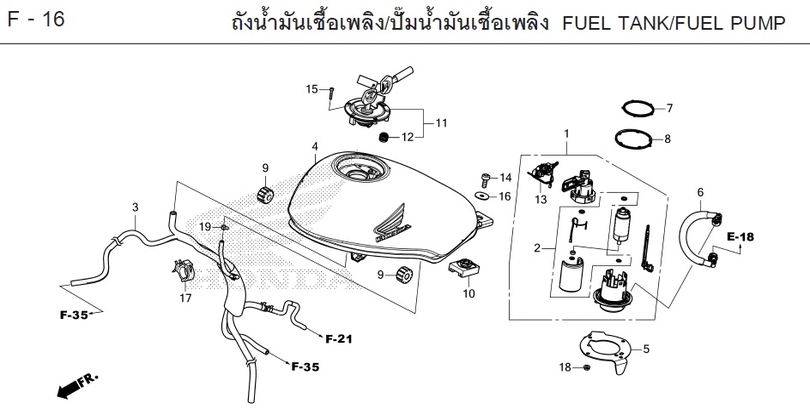

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-16
- 1 FUEL PUMP SET 16700-K87-A01Qty per bike: 1
- 2 FUEL FILTER SET 16707-K45-N01Qty per bike: 1
- 3 PIPE SET 17417-K87-T50Qty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K2Y-A00ZAQty per bike: 1
- 4 FUEL TANK SET (WL) (BLACK) 17520-K2Y-A00ZEQty per bike: 1
- 4 FUEL TANK SET (WL) (RED-BLACK) 17520-K87-A00ZBQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A00ZCQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A00ZDQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A00ZEQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A10ZAQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A10ZBQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A10ZCQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A10ZDQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A20ZDQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A20ZFQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A20ZGQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-A30ZBQty per bike: 1
- 4 PLATE, FUEL PUMP MOUNTING 17520-K87-T90ZAQty per bike: 1
- 5 PLATE, FUEL PUMP MOUNTING 17526-K87-A00Qty per bike: 1
- 6 PIPE SET, FUEL FEED 17570-K87-A01Qty per bike: 1
- 7 GASKET, FUEL PUMP 17572-K26-900Qty per bike: 1
- 8 SEAL, DUST 17573-KPN-A71Qty per bike: 1
- 9 RUBBER, FUEL TANK FRONT 17611-KPK-900Qty per bike: 2
- 10 RUBBER, FUEL TANK REAR 17613-K87-A00Qty per bike: 1
- 11 FUEL FILLER CAP SET 17620-KZZ-J01Qty per bike: 1
- 11 FUEL FILLER CAP SET 17620-KZZ-J02Qty per bike: 1
- 11 FUEL FILLER CAP SET 17620-KZZ-J03Qty per bike: 1
- 12 SEAL, FUEL FILLER CAP 17621-MGP-D61Qty per bike: 1
- 12 SEAL, FUEL FILLER CAP BREATHER 17621-MGP-D62Qty per bike: 1
- 13 FUEL LEVEL SENSOR SET (FLOAT) 37800-K87-A01Qty per bike: 1
- 14 BOLT, 8x22 90116-MGZ-J00Qty per bike: 1
- 15 BOLT, 4x25 90120-MJE-D00Qty per bike: 3
- 16 WASHER, 8 mm 90325-KCC-900Qty per bike: 1
- 17 CLIP, LOCK, 25 mm 90690-GHB-671Qty per bike: 1
- 18 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 4
- 19 BAND, HOSE (D8) 95002-40800-08Qty per bike: 1
