REBEL 300 2023 · E-6 RIGHT CRANKCASE COVER

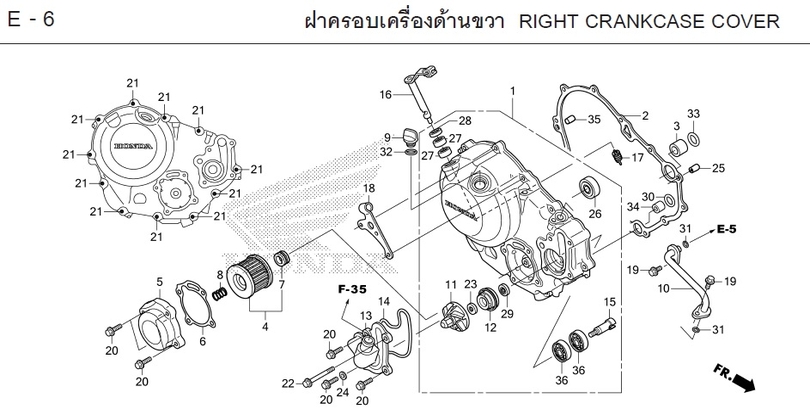

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page E-6

1 COVER SET, RIGHT CRANKCASE 11300-K0A-EB0Qty per bike: 1
1 COVER SET, RIGHT CRANKCASE 11300-K33-D02Qty per bike: 1
2 GASKET, RIGHT CRANKCASE COVER 11394-K87-A30Qty per bike: 1
2 GASKET, RIGHT CRANKCASE COVER 11394-KYJ-900Qty per bike: 1
3 COLLAR, 18 mm 15326-KT7-000Qty per bike: 1
4 OIL FILTER ELEMENT SET 15410-K0A-DB1Qty per bike: 1
4 OIL FILTER ELEMENT SET 15410-KYJ-902Qty per bike: 1
5 COVER, OIL FILTER 15411-K0A-EB0Qty per bike: 1
5 COVER, OIL FILTER 15411-KYJ-900Qty per bike: 1
6 GASKET, OIL FILTER COVER 15412-KYJ-901Qty per bike: 1
7 RUBBER, OIL FILTER ELEMENT 15413-MC8-000Qty per bike: 1
8 SPRING, OIL FILTER ELEMENT 15414-KF0-000Qty per bike: 1
9 CAP, OIL FILLER 15611-KA4-710Qty per bike: 1
10 HOSE, WATER 19120-K0A-DB0Qty per bike: 1
10 HOSE, WATER 19120-KYJ-900Qty per bike: 1
11 IMPELLER, WATER PUMP 19215-KGH-900Qty per bike: 1
12 SEAL, WATER PUMP 19217-P72-013Qty per bike: 1
13 COVER, WATER PUMP 19220-K0A-EB0Qty per bike: 1
13 COVER, WATER PUMP 19220-KYJ-900Qty per bike: 1
14 GASKET, WATER PUMP COVER 19226-KYJ-710Qty per bike: 1
14 GASKET, WATER PUMP COVER 19226-KYJ-901Qty per bike: 1
15 SHAFT, WATER PUMP 19241-KZZ-D20Qty per bike: 1
16 ARM, CLUTCH LIFTER 22810-K33-D00Qty per bike: 1
16 ARM, CLUTCH LIFTER 22810-KYJ-900Qty per bike: 1
17 SPRING, CLUTCH LIFTER ARM 22815-KM7-700Qty per bike: 1
18 STAY, CLUTCH CABLE 22821-K2Y-A00Qty per bike: 1
18 STAY, CLUTCH CABLE 22821-K33-D00Qty per bike: 1
18 STAY, CLUTCH CABLE 22821-KYJ-900Qty per bike: 1
19 BOLT, FLANGE, 6x16 90010-KYJ-900Qty per bike: 2
20 BOLT, FLANGE, 6x25 90012-KYJ-900Qty per bike: 7
21 BOLT, FLANGE, 6x35 90012-K64-N00Qty per bike: 11
21 BOLT, FLANGE, 6x30 90013-KYJ-900Qty per bike: 11
22 BOLT, FLANGE, 6x60 90015-KYJ-900Qty per bike: 1
23 WASHER, 7x13x1.2 90423-KW6-900Qty per bike: 1
24 WASHER, SEALING, 6.5 mm 90463-ML7-000Qty per bike: 1
25 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 1
26 BEARING, RADIAL BALL, SPECIAL, 6001U 91009-KYJ-711Qty per bike: 1
26 BEARING, RADIAL BALL, SPECIAL, 6001U 91009-KYJ-901Qty per bike: 1
27 BEARING, NEEDLE ROLLER, 12x16x10 91021-MKS-E01Qty per bike: 2
27 BEARING, NEEDLE ROLLER, 12x16x10 91022-KYJ-711Qty per bike: 2
27 BEARING, NEEDLE ROLLER, 12x16x10 91053-719-005Qty per bike: 2
28 OIL SEAL, 12x18x5 91204-KK0-003Qty per bike: 1
29 OIL SEAL, 12x26x5 91202-KTW-901Qty per bike: 1
30 O-RING, 11.8x1.9 91301-KYJ-710Qty per bike: 1
30 O-RING, 11.8x1.9 91301-KYJ-901Qty per bike: 1
31 O-RING, 9.8x2.4 91302-KYJ-710Qty per bike: 2
31 O-RING, 9.8x2.4 91302-KYJ-901Qty per bike: 2
32 O-RING, 18x3 91307-035-000Qty per bike: 1
33 O-RING, 17.8x1.9 91322-K0A-DB0Qty per bike: 1
33 O-RING, 17.8x1.9 91322-K87-A30Qty per bike: 1
33 O-RING, 17.8x1.9 91322-PT0-004Qty per bike: 1
34 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 1
35 PIN B, DOWEL, 8x14 94302-08140Qty per bike: 1
36 BEARING, RADIAL BALL, 6001 91015-KYJ-711Qty per bike: 2
36 BEARING, RADIAL BALL, 6001 96100-60013-00Qty per bike: 2
