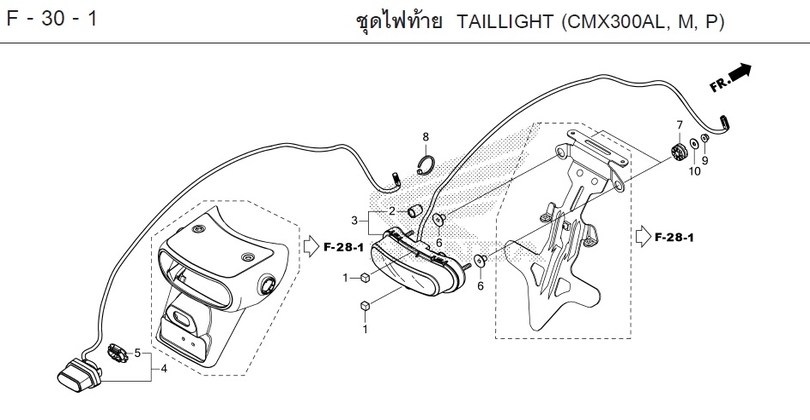

REBEL 300 2023 · F-30-1 TAILLIGHT (CMX300AL, M, P)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-30-1
- 1 RUBBER B 11391-MKG-A00Qty per bike: 2
- 2 PIPE, CP 33113-K07-M51Qty per bike: 1
- 3 TAILLIGHT UNIT 33701-K87-T81Qty per bike: 1
- 4 LICENSE LIGHT SET 33720-K87-A31Qty per bike: 1
- 5 HOLDER 33721-K56-V51Qty per bike: 1
- 6 COLLAR (PCSV) 61104-MJM-A10Qty per bike: 2
- 7 RUBBER B, SEAT MOUNTING 77208-KW7-900Qty per bike: 2
- 8 BAND, NYLON 83645-GG0-000Qty per bike: 1
- 9 NUT, FLANGE, 5 mm 94050-05000Qty per bike: 2
- 10 WASHER, 5 mm 94103-05000Qty per bike: 2
