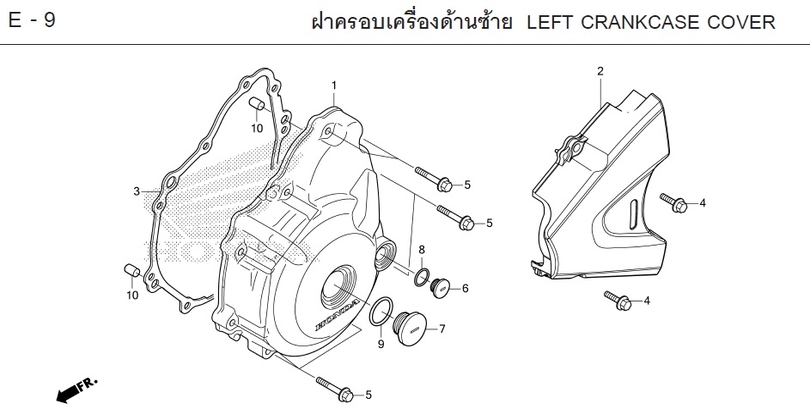

REBEL 300 2023 · E-9 LEFT CRANKCASE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-9
- 1 COVER, LEFT CRANKCASE 11341-K0A-TB0Qty per bike: 1
- 1 COVER, LEFT CRANKCASE 11341-K87-A30Qty per bike: 1
- 1 COVER, LEFT CRANKCASE 11341-KYJ-900Qty per bike: 1
- 2 COVER, LEFT CRANKCASE REAR 11360-K2Y-A00Qty per bike: 1
- 2 COVER, LEFT CRANKCASE REAR 11360-K87-A00Qty per bike: 1
- 3 GASKET, LEFT CRANKCASE COVER 11395-K87-A30Qty per bike: 1
- 3 GASKET, LEFT CRANKCASE COVER 11395-KYJ-900Qty per bike: 1
- 4 BOLT, FLANGE, 6x25 90012-KYJ-900Qty per bike: 2
- 5 BOLT, FLANGE, 6x35 90012-K64-N00Qty per bike: 9
- 5 BOLT, FLANGE, 6x30 90013-KYJ-900Qty per bike: 9
- 6 CAP, TIMING HOLE 90084-KPP-860Qty per bike: 1
- 7 CAP, CRANKSHAFT HOLE, 30 mm 90087-KPP-860Qty per bike: 1
- 7 CAP, CRANKSHAFT HOLE, 30 mm 90087-KYJ-710Qty per bike: 1
- 8 O-RING, 13.8x2.5 91303-377-000Qty per bike: 1
- 9 O-RING, 30 mm 91356-KWV-000Qty per bike: 1
- 10 PIN B, DOWEL, 8x14 94302-08140Qty per bike: 2
