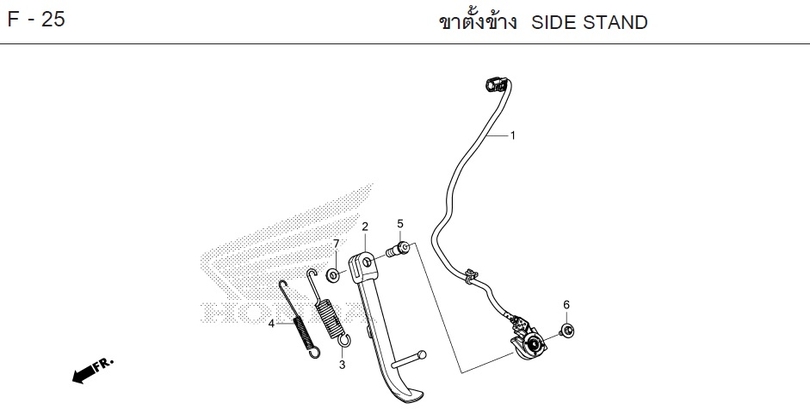

REBEL 300 2023 · F-25 SIDE STAND
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-25
- 1 SWITCH, SIDE STAND (ENGINE CUT-OFF) 35700-K87-A01Qty per bike: 1
- 2 STAND, SIDE 50530-K87-A00Qty per bike: 1
- 3 SPRING, SIDE STAND 50541-MB0-000Qty per bike: 1
- 4 SPRING, SIDE STAND SPRING AUXILIARY 50542-MB0-611Qty per bike: 1
- 5 BOLT, SIDE STAND PIVOT 90108-KZL-860Qty per bike: 1
- 5 BOLT, SIDE STAND PIVOT 90108-MK6-670Qty per bike: 1
- 6 BOLT, STAND SWITCH MOUNTING 90147-KVY-900Qty per bike: 1
- 7 NUT, SIDE STAND MOUNTING 90203-KVB-900Qty per bike: 1
