REBEL 300 2025 · E-10-1 10-1 LEFT CRANKCASE COVER (E-CLUTCH)

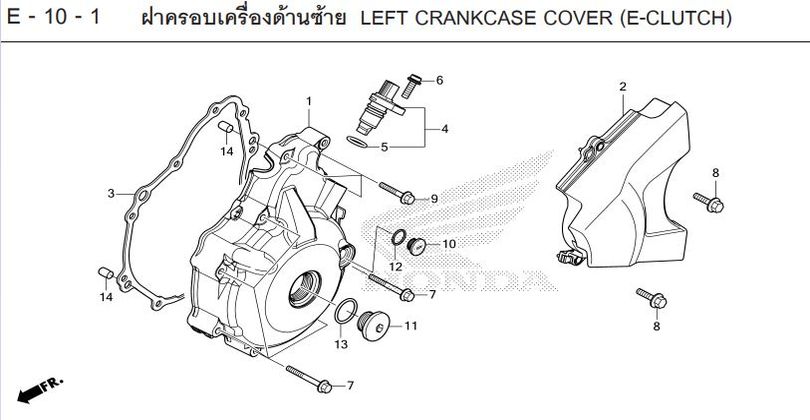

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10-1
- 1 COVER, LEFT CRANKCASE 11341-K2Y-J00Qty per bike: 1
- 2 SHAFT, HANDLE MOUNTING 11360-K2Y-J70Qty per bike: 1
- 3 GASKET, LEFT CRANKCASE COVER 11395-K87-A30Qty per bike: 1
- 4 SENSOR SET 37500-K2Y-J01Qty per bike: 1
- 5 O-RING 37501-K2Y-J01Qty per bike: 1
- 6 BOLT, FLANGE 90002-MJP-G50Qty per bike: 1
- 7 STUD 90010-K1T-E10Qty per bike: 6
- 8 BOLT, FLANGE, 6x25 90012-KYJ-900Qty per bike: 2
- 9 BOLT, FLANGE, 6x30 90013-KYJ-900Qty per bike: 3
- 10 CAP, TIMING HOLE 90084-KPP-860Qty per bike: 1
- 11 CAP, CRANKSHAFT HOLE, 30 mm 90087-KYJ-710Qty per bike: 1
- 12 O-RING, 13.8x2.5 91303-377-000Qty per bike: 1
- 13 O-RING, 30 mm 91356-KWV-000Qty per bike: 1
- 14 PIN B, DOWEL, 8x14 94302-08140Qty per bike: 2
