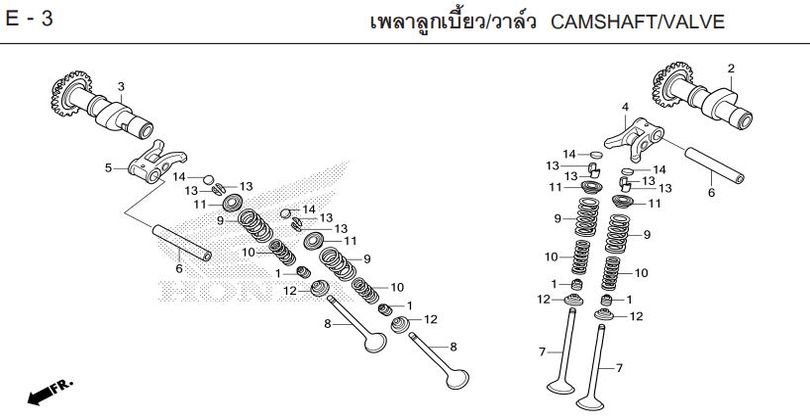

REBEL 300 2025 · E-3 CAMSHAFT/VALVE

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page E-3

1 SEAL, VALVE STEM 12209-ML0-722Qty per bike: 4
2 CAMSHAFT, INTAKE (34T) 14110-K2Y-A00Qty per bike: 1
3 SHAFT, VALVE TIMING 14210-K2Y-A50Qty per bike: 1
4 ARM, INTAKE ROCKER 14430-K0A-DB0Qty per bike: 1
5 ARM, EXHAUST ROCKER 14440-K0A-DB0Qty per bike: 1
6 SHAFT, ROCKER ARM 14451-KYJ-900Qty per bike: 2
7 VALVE, INTAKE 14711-KYJ-900Qty per bike: 2
8 VALVE, EXHAUST 14721-KYJ-900Qty per bike: 2
9 SPRING, OUTER VALVE 14751-K33-D01Qty per bike: 4
10 SPRING, INNER VALVE 14761-K33-D01Qty per bike: 4
11 SEAT, VALVE SPRING 14771-MFL-000Qty per bike: 4
12 WASHER, VALVE SPRING 14775-KYJ-900Qty per bike: 4
13 COTTER, VALVE 14781-KYJ-710Qty per bike: 8
14 PLATE (1.200) 14901-KT7-013Qty per bike: 4
14 PLATE (1.225) 14902-KT7-013Qty per bike: 4
14 PLATE (1.250) 14903-KT7-013Qty per bike: 4
14 PLATE (1.275) 14904-KT7-013Qty per bike: 4
14 PLATE (1.300) 14905-KT7-013Qty per bike: 4
14 PLATE (1.325) 14906-KT7-013Qty per bike: 4
14 PLATE (1.350) 14907-KT7-013Qty per bike: 4
14 PLATE (1.375) 14908-KT7-013Qty per bike: 4
14 PLATE (1.400) 14909-KT7-013Qty per bike: 4
14 PLATE (1.425) 14910-KT7-013Qty per bike: 4
14 PLATE (1.450) 14911-KT7-013Qty per bike: 4
14 PLATE (1.475) 14912-KT7-013Qty per bike: 4
14 PLATE (1.500) 14913-KT7-013Qty per bike: 4
14 PLATE (1.525) 14914-KT7-013Qty per bike: 4
14 PLATE (1.550) 14915-KT7-013Qty per bike: 4
14 PLATE (1.575) 14916-KT7-013Qty per bike: 4
14 PLATE (1.600) 14917-KT7-013Qty per bike: 4
14 PLATE (1.625) 14918-KT7-013Qty per bike: 4
14 PLATE (1.650) 14919-KT7-013Qty per bike: 4
14 PLATE (1.675) 14920-KT7-013Qty per bike: 4
14 PLATE (1.700) 14921-KT7-013Qty per bike: 4
14 PLATE (1.725) 14922-KT7-013Qty per bike: 4
14 PLATE (1.750) 14923-KT7-013Qty per bike: 4
14 PLATE (1.775) 14924-KT7-013Qty per bike: 4
14 PLATE (1.800) 14925-KT7-013Qty per bike: 4
14 PLATE (1.825) 14926-KT7-013Qty per bike: 4
14 PLATE (1.850) 14927-KT7-013Qty per bike: 4
14 PLATE (1.875) 14928-KT7-013Qty per bike: 4
14 PLATE (1.900) 14929-KT7-013Qty per bike: 4
14 PLATE (1.925) 14930-KT7-013Qty per bike: 4
14 PLATE (1.950) 14931-KT7-013Qty per bike: 4
14 PLATE (1.975) 14932-KT7-013Qty per bike: 4
14 PLATE (2.000) 14933-KT7-013Qty per bike: 4
14 PLATE (2.025) 14934-KT7-013Qty per bike: 4
14 PLATE (2.050) 14935-KT7-013Qty per bike: 4
14 PLATE (2.075) 14936-KT7-013Qty per bike: 4
14 PLATE (2.100) 14937-KT7-013Qty per bike: 4
14 PLATE (2.125) 14938-KT7-013Qty per bike: 4
14 PLATE (2.150) 14939-KT7-013Qty per bike: 4
14 PLATE (2.175) 14940-KT7-013Qty per bike: 4
14 PLATE (2.200) 14941-KT7-013Qty per bike: 4
14 PLATE (2.225) 14942-KT7-013Qty per bike: 4
14 PLATE (2.250) 14943-KT7-013Qty per bike: 4
14 PLATE (2.275) 14944-KT7-013Qty per bike: 4
14 PLATE (2.300) 14945-KT7-013Qty per bike: 4
14 PLATE (2.325) 14946-KT7-013Qty per bike: 4
14 PLATE (2.350) 14947-KT7-013Qty per bike: 4
14 PLATE (2.375) 14948-KT7-013Qty per bike: 4
14 PLATE (2.400) 14949-KT7-013Qty per bike: 4
14 PLATE (2.425) 14950-KT7-013Qty per bike: 4
14 PLATE (2.450) 14951-KT7-013Qty per bike: 4
14 PLATE (2.475) 14952-KT7-013Qty per bike: 4
14 PLATE (2.500) 14953-KT7-013Qty per bike: 4
14 PLATE (2.525) 14954-KT7-013Qty per bike: 4
14 PLATE (2.550) 14955-KT7-013Qty per bike: 4
14 PLATE (2.575) 14956-KT7-013Qty per bike: 4
14 PLATE (2.600) 14957-KT7-013Qty per bike: 4
14 PLATE (2.625) 14958-KT7-013Qty per bike: 4
14 PLATE (2.650) 14959-KT7-013Qty per bike: 4
14 PLATE (2.675) 14960-KT7-013Qty per bike: 4
14 PLATE (2.700) 14961-KT7-013Qty per bike: 4
14 PLATE (2.725) 14962-KT7-013Qty per bike: 4
14 PLATE (2.750) 14963-KT7-013Qty per bike: 4
14 PLATE (2.775) 14964-KT7-013Qty per bike: 4
14 PLATE (2.800) 14965-KT7-013Qty per bike: 4
14 PLATE (2.825) 14966-KT7-013Qty per bike: 4
14 PLATE (2.850) 14967-KT7-013Qty per bike: 4
14 PLATE (2.875) 14968-KT7-013Qty per bike: 4
14 PLATE (2.900) 14969-KT7-013Qty per bike: 4

This catalogue is shared by: REBEL 300 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
