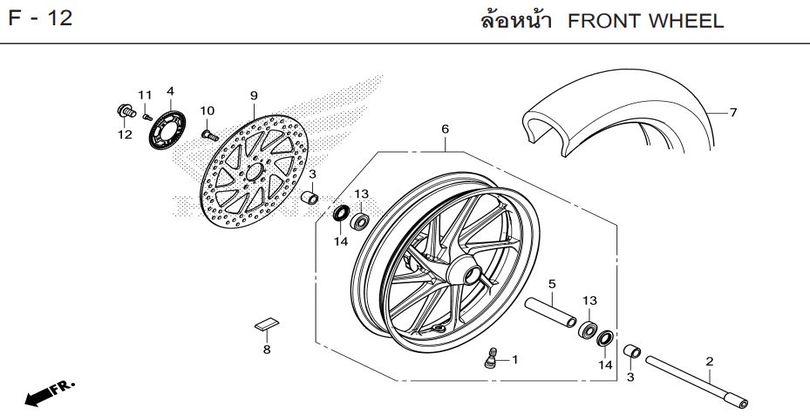

REBEL 300 2025 · F-12 FRONT WHEEL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-12
- 1 VALVE, TIRE (IRC) 42753-GM9-743Qty per bike: 1
- 2 AXLE, FRONT WHEEL 44301-K87-A00Qty per bike: 1
- 3 COLLAR, FRONT WHEEL SIDE 44311-MGZ-J00Qty per bike: 2
- 4 RING, FRONT WHEEL PULSER 44515-K2Y-A00Qty per bike: 1
- 5 COLLAR, FRONT AXLE BEARING DISTANCE 44620-K87-A00Qty per bike: 1
- 6 FRONT WHEEL SET 44650-K2Y-J40Qty per bike: 1
- 7 TIRE, FRONT 44711-K2Y-J41Qty per bike: 1
- 8 WEIGHT, WHEEL BALANCER (LEAD) 44721-MLN-EQ1Qty per bike: 1
- 8 WEIGHT, WHEEL BALANCER (LEAD) 44722-MLN-EQ1Qty per bike: 1
- 8 WEIGHT, WHEEL BALANCER (LEAD) 44723-MLN-EQ1Qty per bike: 1
- 9 DISK, FRONT BRAKE 45251-K87-L50Qty per bike: 1
- 10 BOLT, BRAKE DISK MOUNTING, 8x25 90105-MGS-D30Qty per bike: 5
- 11 BOLT, 5x10 90131-K87-L50Qty per bike: 5
- 12 BOLT, FRONT AXLE 90305-K87-A00Qty per bike: 1
- 13 BEARING, RADIAL BALL, 6203UU 91051-KVK-901Qty per bike: 2
- 14 SEAL, DUST, 25x40x5 91252-K35-V01Qty per bike: 2
