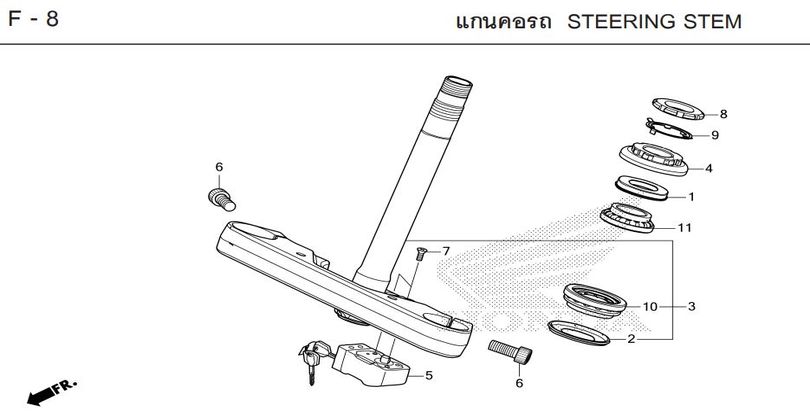

REBEL 300 2025 · F-8 STEERING STEM
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-8
- 1 SEAL, DUST UPPER 53213-MB4-771Qty per bike: 1
- 2 SEAL, DUST 53214-371-010Qty per bike: 1
- 3 STEERING STEM COMP 53219-K87-A00Qty per bike: 1
- 4 NUT, STEERING STEM ADJUSTING 53220-K87-A00Qty per bike: 1
- 5 LOCK, STEERING 53600-MEG-003Qty per bike: 1
- 6 BOLT, 10x25 90103-K87-A00Qty per bike: 2
- 7 SCREW, 6x16 90164-GGK-003Qty per bike: 2
- 8 NUT, STEERING STEM LOCK B 90302-425-830Qty per bike: 1
- 9 WASHER, LOCK 90506-425-830Qty per bike: 1
- 10 BEARING SET, LOWER STEERING 91016-KT8-005Qty per bike: 1
- 11 BEARING SET, UPPER STEERING 91051-MKP-DN1Qty per bike: 1
