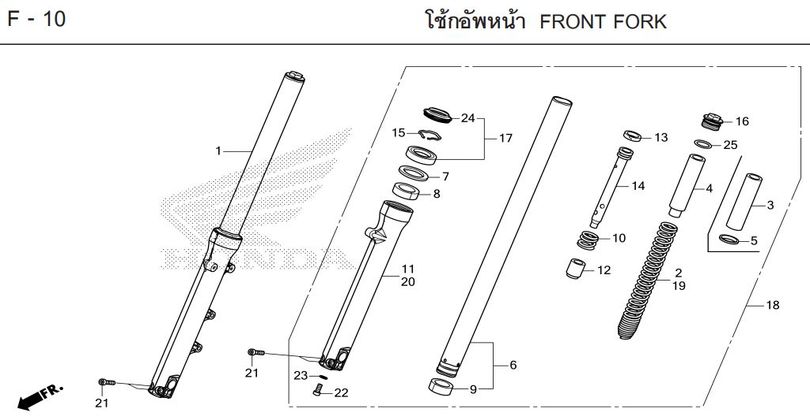

REBEL 300 2025 · F-10 FRONT FORK
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-10
- 1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K2Y-J41Qty per bike: 1
- 2 SPRING, RIGHT FRONT FORK 51401-K2Y-J41Qty per bike: 1
- 3 SEAT, SPRING 51402-K2Y-J41Qty per bike: 1
- 4 COLLAR, SPRING 51402-K87-A31Qty per bike: 1
- 5 WASHER, SPRING 51403-KF0-003Qty per bike: 1
- 6 FRONT SHOCK ABSORBER SHAFT SET 51410-K87-A31Qty per bike: 2
- 7 WASHER, SEAL 51412-MB4-003Qty per bike: 2
- 8 BUSH, FRONT FORK TUBE 51414-MFJ-A51Qty per bike: 2
- 9 BUSH, FRONT FORK TUBE 51415-MFJ-A51Qty per bike: 2
- 10 SPRING, PISTON 51416-K2Y-J41Qty per bike: 2
- 11 TUBE, RIGHT FRONT FORK (OUTER) 51420-K87-A31Qty per bike: 1
- 12 BUSH, OIL PROOF 51432-K0Z-901Qty per bike: 2
- 13 RING, FORK PISTON 51437-MM5-003Qty per bike: 2
- 14 SHAFT, INNER SHOCK ABSORBER 51440-K2Y-J41Qty per bike: 2
- 15 RING, OIL SEAL STOPPER 51447-KA4-711Qty per bike: 2
- 16 BOLT, FRONT FORK CAP 51454-K2Y-J41Qty per bike: 2
- 17 SEAL SET, FRONT FORK TUBE 51490-MKL-D81Qty per bike: 2
- 18 SHOCK ABSORBER, LEFT FRONT 51500-K2Y-J41Qty per bike: 1
- 19 SPRING, LEFT FRONT FORK 51501-K2Y-J41Qty per bike: 1
- 20 TUBE, LEFT FRONT FORK (OUTER) 51520-K87-A31Qty per bike: 1
- 21 BOLT, 8x32 90102-K87-A00Qty per bike: 4
- 22 BOLT, 8 mm 90116-KV3-701Qty per bike: 2
- 23 WASHER, SPECIAL, 8 mm (SHOWA) 90544-283-000Qty per bike: 2
- 24 SEAL, DUST 91251-MKL-D81Qty per bike: 2
- 25 O-RING, 33.2x2.4 91356-KF0-003Qty per bike: 2
