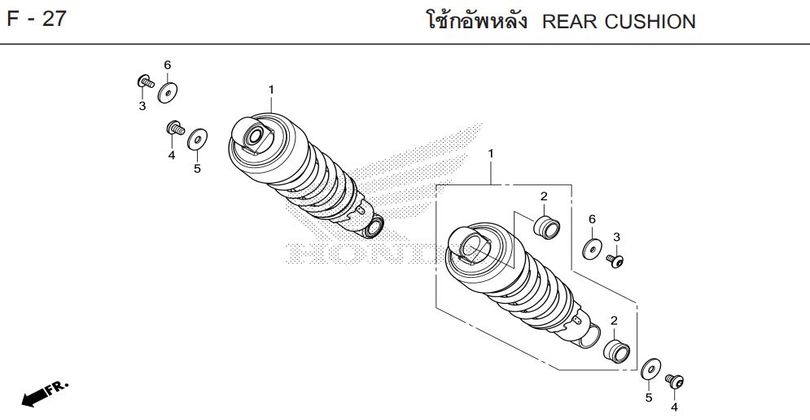

REBEL 300 2025 · F-27 REAR CUSHION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-27
- 1 SHOCK ABSORBER, REAR 52400-K2Y-J41Qty per bike: 2
- 2 BUSH, REAR SHOCK ABSORBER EYE A 52487-MZ1-003Qty per bike: 4
- 3 BOLT, SPECIAL, 6x12 90101-K87-A00Qty per bike: 2
- 4 BOLT, SPECIAL, 8x12 90109-K87-A00Qty per bike: 2
- 5 WASHER, 8.5x26 90502-K87-A00Qty per bike: 2
- 6 WASHER, 6.5x26 90503-K87-A00Qty per bike: 2
