REBEL 300 2025 · F-13 REAR BRAKE MASTER CYLINDER

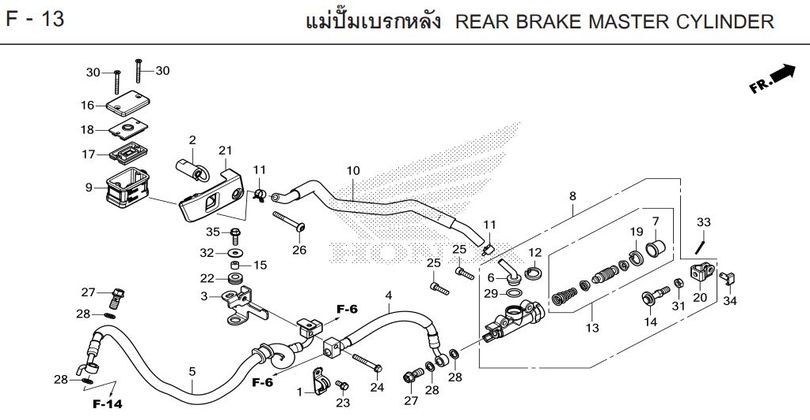

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-13
- 1 BAND, BRAKE HOSE 43155-K2Y-A00Qty per bike: 1
- 2 COLLAR, BRAKE RESERVOIR 43156-K87-A00Qty per bike: 1
- 3 STAY, REAR BRAKE HOSE 43160-K87-L50Qty per bike: 1
- 4 HOSE, REAR BRAKE 43314-K2Y-J41Qty per bike: 1
- 5 HOSE, REAR BRAKE D 43317-K2Y-A01Qty per bike: 1
- 6 JOINT 43503-KCY-671Qty per bike: 1
- 7 BOOT, DUST 43504-MB2-006Qty per bike: 1
- 8 MASTER CYLINDER SET, REAR BRAKE 43510-K87-A01Qty per bike: 1
- 9 RESERVOIR, REAR BRAKE 43511-KV3-831Qty per bike: 1
- 10 HOSE, REAR BRAKE MASTER CYLINDER 43512-K87-A01Qty per bike: 1
- 11 BAND, REAR BRAKE MASTER CYLINDER HOSE 43514-KS6-701Qty per bike: 2
- 12 CLIP, REAR BRAKE MASTER CYLINDER LOCK 43517-KS6-701Qty per bike: 1
- 13 PISTON SET, REAR BRAKE MASTER CYLINDER 43520-MJ6-315Qty per bike: 1
- 14 ROD, REAR BRAKE MASTER CYLINDER 43530-KZZ-901Qty per bike: 1
- 15 COLLAR, BRAKE HOSE STAY 45161-K87-L50Qty per bike: 1
- 16 CAP, FRONT BRAKE RESERVOIR 45513-KK1-771Qty per bike: 1
- 17 DIAPHRAGM 45520-MG7-006Qty per bike: 1
- 18 PLATE, DIAPHRAGM 45521-HA2-006Qty per bike: 1
- 19 CLIP, LOCK 46182-MEL-D21Qty per bike: 1
- 20 JOINT, BRAKE MASTER CYLINDER ROD 46504-KV6-702Qty per bike: 1
- 21 COVER, BRAKE RESERVOIR 50328-K87-A00Qty per bike: 1
- 22 RUBBER, REAR FENDER 64312-KWW-640Qty per bike: 1
- 23 BOLT, FLANGE, 6x12 90013-GHB-610Qty per bike: 1
- 24 BOLT, FLANGE, 6x45 90013-GHB-720Qty per bike: 1
- 25 BOLT, 6x22 90111-GHB-660Qty per bike: 2
- 26 BOLT, 6x50 90113-K87-A00Qty per bike: 1
- 27 BOLT, OIL (BRAKE), 10x22 90145-MS9-612Qty per bike: 2
- 28 WASHER, SEALING 90545-300-000Qty per bike: 4
- 29 O-RING, 14.8x2.4 91212-422-006Qty per bike: 1
- 30 SCREW, 4x40 93600-04040-1GQty per bike: 2
- 31 NUT, HEX, 8 mm 94002-08000-0SQty per bike: 1
- 32 WASHER, 6 mm 94103-06000Qty per bike: 1
- 33 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 1
- 34 PIN D, BRAKE MASTER CYLINDER JOINT 95015-54000Qty per bike: 1
- 35 BOLT, FLANGE, 6x20 95701-06020-00Qty per bike: 1
