REBEL 300 2025 · F-34 FRAME BODY

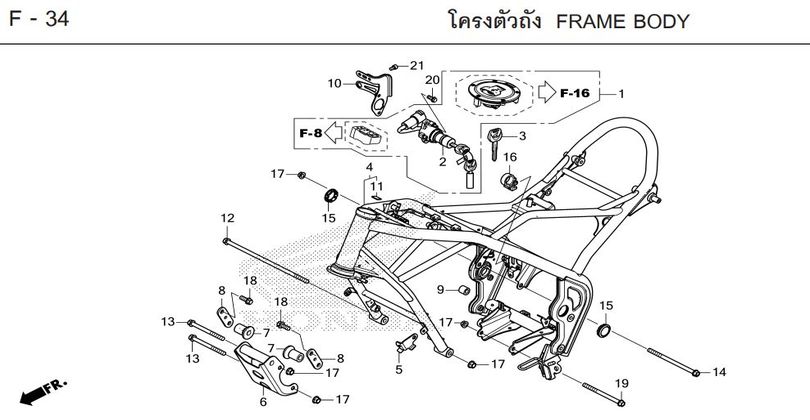

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-34
- 1 KEY SET 35010-MKG-D82Qty per bike: 1
- 2 IGNITION SWITCH SET, STEERING LOCK HONDALOCK 35100-K87-J81Qty per bike: 1
- 3 KEY (TYPE 1) 35121-MAS-G01Qty per bike: 1
- 4 FRAME BODY 50010-K2Y-A50ZBQty per bike: 1
- 4 FRAME BODY SET 50010-K2Y-J40ZAQty per bike: 1
- 5 STAY, HORN 50170-K87-A00Qty per bike: 1
- 6 PLATE, ENGINE MOUNTING 50201-K87-A00Qty per bike: 2
- 7 COLLAR, ENGINE MOUNTING 50206-K87-A30Qty per bike: 2
- 8 PLATE, ENGINE HANGER LUG 50207-K87-A30Qty per bike: 1
- 9 COLLAR, RIGHT ENGINE MOUNTING C 50353-K87-A00Qty per bike: 1
- 10 แผ่นยึดชุดสวิตช์จุดระเบิด, ล็อกคอ 53180-K87-A30Qty per bike: 1
- 11 MARK, WING 86150-KPG-901Qty per bike: 1
- 12 BOLT, FLANGE, 10x292 90106-K87-A00Qty per bike: 2
- 13 BOLT, FLANGE, 10x115 90107-K87-A00Qty per bike: 1
- 14 BOLT, FLANGE, 10x165 90117-K87-A00Qty per bike: 2
- 15 CAP, SWINGARM PIVOT 90307-K87-A00Qty per bike: 1
- 16 CLIP, LOCK 91556-HL1-A00Qty per bike: 5
- 17 NUT, FLANGE, 10 mm 94050-10070Qty per bike: 2
- 18 BOLT, FLANGE, 10x25 95701-10025-07Qty per bike: 1
- 19 BOLT, FLANGE, 10x130 95801-10130-07Qty per bike: 2
- 20 BOLT, FLANGE, 6x14 96001-06014-07Qty per bike: 2
- 21 BOLT, 6x10 96600-06010-08Qty per bike: 1
