REBEL 300 2025 · F-15 REAR WHEEL

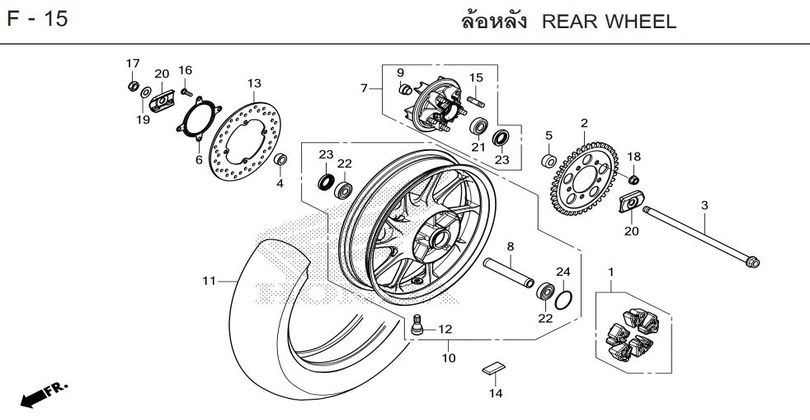

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15
- 1 DAMPER SET, RUBBER 06410-MGS-D30Qty per bike: 1
- 2 SPROCKET, DRIVEN (36T) 41201-K87-A00Qty per bike: 1
- 3 AXLE, REAR WHEEL 42301-K3S-JA0Qty per bike: 1
- 4 COLLAR, RIGHT REAR WHEEL SIDE 42312-MGZ-J00Qty per bike: 1
- 5 COLLAR, LEFT REAR WHEEL SIDE 42313-K87-A00Qty per bike: 1
- 6 PULSER RING 42515-K2Y-A00Qty per bike: 1
- 7 FLANGE SET, DRIVEN SPROCKET 42615-MKP-DN0Qty per bike: 1
- 8 COLLAR, REAR WHEEL BEARING DISTANCE 42620-K87-A00Qty per bike: 1
- 9 COLLAR, REAR SPROCKET FLANGE SET BEARING 42625-K87-A00Qty per bike: 1
- 10 REAR WHEEL SET 42650-K2Y-J40Qty per bike: 1
- 11 TIRE, REAR 42711-K2Y-J41Qty per bike: 1
- 12 VALVE, TIRE (IRC) 42753-GM9-743Qty per bike: 1
- 13 DISK, REAR BRAKE 43251-MKY-D51Qty per bike: 1
- 14 WEIGHT, WHEEL BALANCER (LEAD) 44721-MLN-EQ1Qty per bike: 1
- 14 WEIGHT, WHEEL BALANCER (LEAD) 44722-MLN-EQ1Qty per bike: 1
- 14 WEIGHT, WHEEL BALANCER (LEAD) 44723-MLN-EQ1Qty per bike: 1
- 15 BOLT, STUD, 12x25 90102-MAS-000Qty per bike: 5
- 16 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
- 17 NUT, U, 16 mm 90305-GW2-711Qty per bike: 1
- 18 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 5
- 19 WASHER, 16.4x32x2 90501-K87-A00Qty per bike: 1
- 20 PLATE, SWINGARM SIDE CLOSING 90559-K87-A00Qty per bike: 2
- 21 BEARING, RADIAL BALL, 6204UU 91053-MKP-DN1Qty per bike: 1
- 22 BEARING, RADIAL BALL, 6303UU 91054-MT6-831Qty per bike: 2
- 23 SEAL, DUST, 30x47x8 91253-443-761Qty per bike: 2
- 24 O-RING, 55x2 91351-MGS-D30Qty per bike: 1
