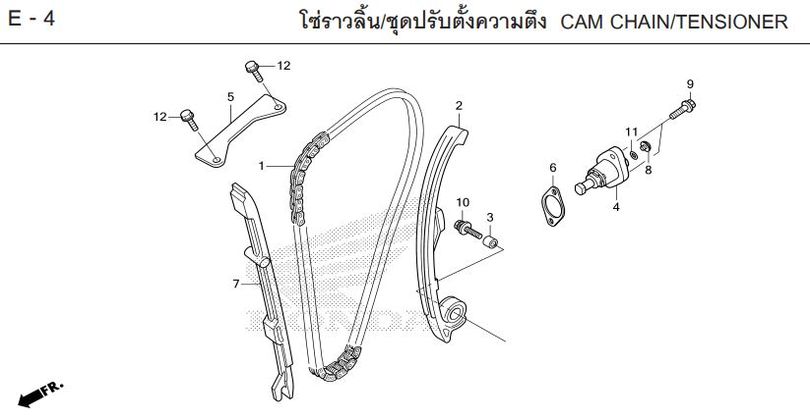

REBEL 300 2025 · E-4 CAM CHAIN/TENSIONER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CHAIN, CAM (128 LINKS) 14401-K1T-E11Qty per bike: 1
- 2 SLIDER, CAM CHAIN 14510-K33-D00Qty per bike: 1
- 3 COLLAR, CAM CHAIN SLIDER 14517-KYJ-900Qty per bike: 1
- 4 TENSIONER 14520-K0A-DB1Qty per bike: 1
- 4 TENSIONER 14520-K33-D01Qty per bike: 1
- 5 PLATE, CAMSHAFT HOLDER 14546-KYJ-900Qty per bike: 1
- 6 GASKET, TENSIONER 14560-KGH-900Qty per bike: 1
- 7 RUBBER, CAM CHAIN A 14611-KYJ-900Qty per bike: 1
- 8 SCREW, 6x6 90005-KYJ-900Qty per bike: 1
- 9 BOLT, FLANGE, 6x22 90011-KYJ-900Qty per bike: 2
- 10 BOLT, WASHER, 6x25 90022-KYJ-900Qty per bike: 1
- 11 O-RING, 1.5x9.5 91306-MG3-000Qty per bike: 1
- 12 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
