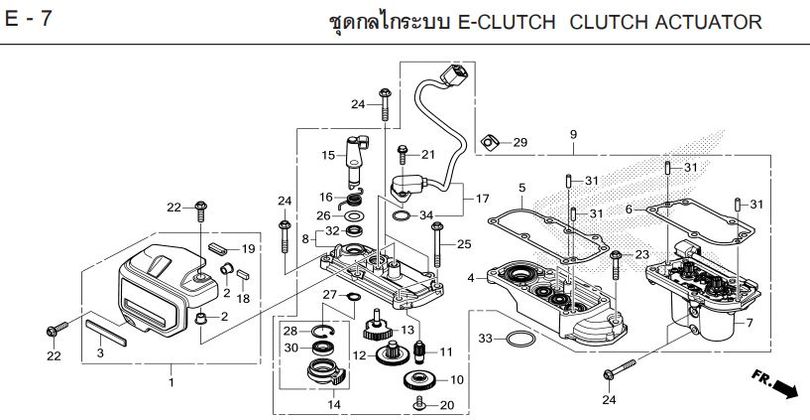

REBEL 300 2025 · E-7 E-CLUTCH CLUTCH ACTUATOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-7
- 1 CLUTCH COVER SET 11370-K2Y-J70Qty per bike: 1
- 2 COLLAR 11372-K2Y-J70Qty per bike: 2
- 3 LABEL, WARNING 11378-MKY-E80Qty per bike: 1
- 4 CLUTCH HOUSING 11410-MKY-E80Qty per bike: 1
- 5 GASKET, CLUTCH BEARING HOUSING 11412-K2Y-J71Qty per bike: 1
- 6 GASKET, CLUTCH BEARING HOUSING 11413-K2Y-J71Qty per bike: 1
- 7 CLUTCH HOUSING SET 11420-K2Y-J71Qty per bike: 1
- 8 COVER, COMPONENT 11430-MKY-E80Qty per bike: 1
- 9 CRUISE CONTROL SET 22200-K2Y-J70Qty per bike: 1
- 10 GEAR SET 22661-MKY-E81Qty per bike: 1
- 11 SHAFT SET 22662-MKY-E80Qty per bike: 1
- 12 GEAR SET 22671-MKY-E81Qty per bike: 1
- 13 GEAR SET 22680-MKY-E81Qty per bike: 1
- 14 GEAR SET 22690-MKY-E80Qty per bike: 1
- 15 ARM, CLUTCH LIFTER 22810-K2Y-J70Qty per bike: 1
- 16 SPRING, CLUTCH 22816-K2Y-J70Qty per bike: 1
- 17 SENSOR SET 38800-K2Y-J71Qty per bike: 1
- 18 RUBBER, HANDLE COVER 53209-K0G-900Qty per bike: 1
- 19 RUBBER 77212-MFJ-D00Qty per bike: 1
- 20 BOLT, WASHER 90002-MKY-E80Qty per bike: 1
- 21 BOLT, FLANGE 90003-MKY-E80Qty per bike: 2
- 22 STUD 90026-GHB-670Qty per bike: 2
- 23 BOLT, FLANGE 90026-GHB-720Qty per bike: 2
- 24 STUD 90026-GHB-740Qty per bike: 5
- 25 BOLT, FLANGE 90026-GHB-780Qty per bike: 3
- 26 WASHER 90525-MBZ-610Qty per bike: 1
- 27 WASHER, OUTER LOCK 90601-MKY-E81Qty per bike: 1
- 28 CLIP, MOUNTING 90602-MKY-E81Qty per bike: 1
- 29 STRAP (50) 90652-MKH-D20Qty per bike: 1
- 30 BEARING 91002-MKY-E81Qty per bike: 1
- 31 ROLLER 91101-MKY-E81Qty per bike: 4
- 32 OIL SEAL 91204-MKY-E81Qty per bike: 1
- 33 O-RING 91301-MKY-E81Qty per bike: 1
- 34 O-RING 91308-HN0-A10Qty per bike: 1
