REBEL 300 2025 · F-17 SEAT

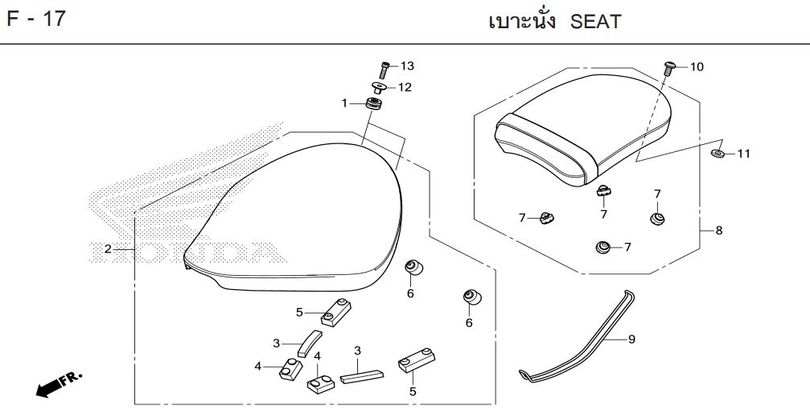

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-17
- 1 RUBBER, HEADLIGHT STAY 61304-415-000Qty per bike: 2
- 2 SEAT 77100-K2Y-J40ZAQty per bike: 1
- 3 RUBBER, SPONGE SEAT 77101-K87-A30Qty per bike: 2
- 4 RUBBER, SEAT 77205-KPP-T00Qty per bike: 2
- 5 RUBBER, SEAT 77205-MFE-670Qty per bike: 2
- 6 RUBBER, DAMPER MOUNTING 77206-KPK-900Qty per bike: 2
- 7 RUBBER C, SEAT MOUNTING 77215-KW7-900Qty per bike: 4
- 8 SEAT, REAR (ALL COLORS) 77300-K87-A30ZCQty per bike: 1
- 9 STRAP, TOOL 80123-GN5-900Qty per bike: 1
- 10 BOLT, SPECIAL, 8x18 90120-K87-A00Qty per bike: 1
- 11 WASHER, 8 mm 90122-K2Y-J40Qty per bike: 1
- 12 COLLAR, 19x6.2x13.5 90502-KS5-000Qty per bike: 2
- 13 BOLT, 6x22 96600-06022-07Qty per bike: 2
