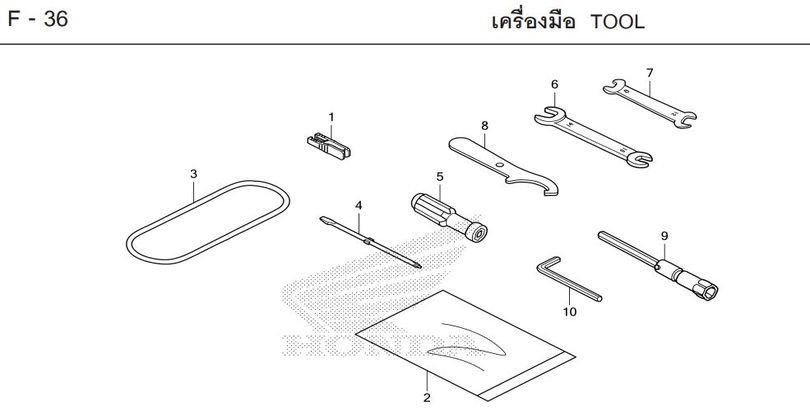

REBEL 300 2025 · F-36 TOOL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-36
- 1 PULLER, FUSE 38235-S04-003Qty per bike: 1
- 2 POUCH, MANUAL 77251-GR1-000Qty per bike: 1
- 3 STRAP, TOOL 80123-KPP-900Qty per bike: 1
- 4 SCREWDRIVER, PHILLIPS & FLAT (NO.2) 89102-538-000Qty per bike: 1
- 5 HANDLE, SCREWDRIVER 89103-538-000Qty per bike: 1
- 6 WRENCH, OPEN END, 10x14 89211-KWW-640Qty per bike: 1
- 7 WRENCH, OPEN END, 8x12 89211-MGZ-J00Qty per bike: 1
- 8 WRENCH, ADJUSTABLE 89215-404-670Qty per bike: 1
- 9 WRENCH, SPARK PLUG (16.5) 89216-MAT-000Qty per bike: 1
- 10 WRENCH, HEX, 5 mm 89221-429-000Qty per bike: 1
This catalogue is shared by: REBEL 300 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
