REBEL 300 2025 · E-13 OIL PUMP

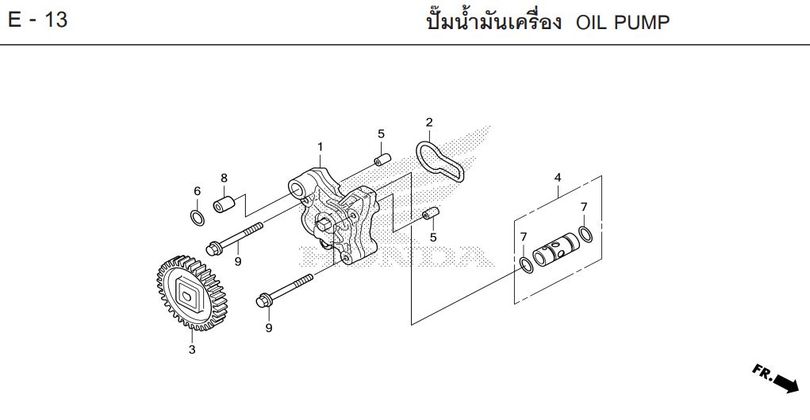

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 OIL PUMP ASSY 15100-KYJ-900Qty per bike: 1
- 2 GASKET, OIL PUMP 15119-KYJ-710Qty per bike: 1
- 3 GEAR, OIL PUMP DRIVE (32T) 15130-K0A-DB0Qty per bike: 1
- 4 VALVE SET, OIL PRESSURE RELIEF 15220-KYJ-900Qty per bike: 1
- 5 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 6 O-RING, 11.8x1.9 91301-KYJ-710Qty per bike: 1
- 6 O-RING, 11.8x1.9 91301-KYJ-901Qty per bike: 1
- 7 O-RING, 11.8x1.9 91301-KYJ-901Qty per bike: 2
- 8 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 1
- 9 BOLT, FLANGE, 6x45 95701-06045-00Qty per bike: 3
