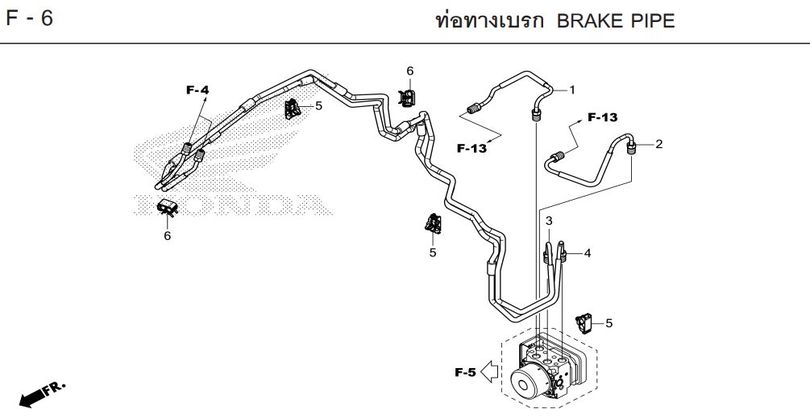

REBEL 300 2025 · F-6 BRAKE PIPE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-6
- 1 PIPE, REAR BRAKE B 43315-K87-L50Qty per bike: 1
- 2 PIPE, REAR BRAKE C 43316-K87-L50Qty per bike: 1
- 3 PIPE, FRONT BRAKE B 45126-K2Y-A00Qty per bike: 1
- 4 PIPE, FRONT BRAKE C 45127-K2Y-A00Qty per bike: 1
- 5 CLAMP, BRAKE PIPE (7.0x2) 90661-K87-L51Qty per bike: 3
- 6 CLAMP, BRAKE PIPE (7.0x2) 90661-MEW-921Qty per bike: 2
