REBEL 300 2025 · F-23 PEDAL

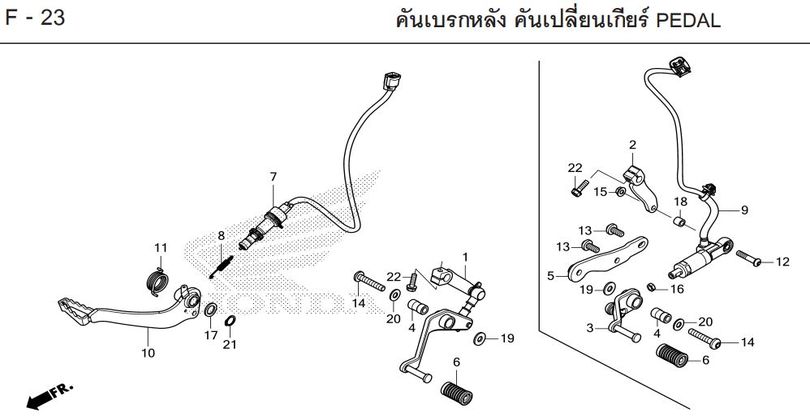

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-23
- 1 GEARSHIFT PEDAL ASSY 24705-K87-A00Qty per bike: 1
- 2 JOINT, GEARSHIFT LEVER 24711-K2Y-J70Qty per bike: 1
- 3 GEARSHIFT LEVER 24720-K2Y-J70Qty per bike: 1
- 4 COLLAR, GEARSHIFT PEDAL PIVOT 24731-K87-A00Qty per bike: 1
- 5 STAY, COVER SET 24741-K2Y-J70Qty per bike: 1
- 6 RUBBER, GEARSHIFT PEDAL 24781-KR3-770Qty per bike: 1
- 7 SWITCH SET, TAILLIGHT 35350-K2Y-J41Qty per bike: 1
- 8 SPRING, REAR STOP SWITCH 35357-K26-900Qty per bike: 1
- 9 STEERING SENSOR SET 36390-K2Y-J71Qty per bike: 1
- 10 LEVER, REAR BRAKE 46501-K87-A30Qty per bike: 1
- 11 SPRING, REAR BRAKE LEVER RETURN 46514-K87-A00Qty per bike: 1
- 12 BOLT 90101-K2Y-J70Qty per bike: 1
- 13 BOLT, 8x18 90108-K87-A00Qty per bike: 2
- 14 BOLT, SPECIAL, 8x45 90110-K87-A00Qty per bike: 1
- 15 NUT, CYLINDER HEAD 90202-KV3-000Qty per bike: 1
- 16 NUT, SPECIAL 6 mm 90301-K2Y-J70Qty per bike: 1
- 17 WASHER, 14 mm 90451-GBL-870Qty per bike: 1
- 18 COLLAR 7 mm 90501-K2Y-J70Qty per bike: 1
- 19 WASHER, 8.5x20 90526-K87-A00Qty per bike: 1
- 20 WASHER, 8 mm 94101-08000Qty per bike: 1
- 21 CLIP, OUTER LOCK, 14 mm 94511-14000Qty per bike: 1
- 22 BOLT, FLANGE, 6x20 95701-06020-07Qty per bike: 1
