REBEL 300 2025 · F-19 AIR CLEANER

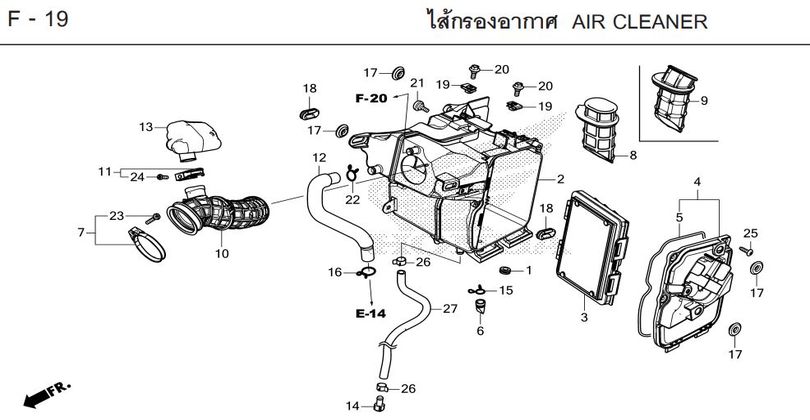

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-19
- 1 RUBBER A (8x16x6.6) 11344-MB0-000Qty per bike: 1
- 2 AIR CLEANER CASE 17210-K87-A00Qty per bike: 1
- 3 ELEMENT, AIR CLEANER 17220-KZZ-900Qty per bike: 1
- 4 AIR CLEANER CASE COVER SET 17230-K87-A00Qty per bike: 1
- 5 SEAL, AIR CLEANER CASE 17232-K87-A00Qty per bike: 1
- 6 TUBE, AIR CLEANER DRAIN 17234-KCW-871Qty per bike: 1
- 7 BAND, AIR TUBE (56) 17235-MKH-D00Qty per bike: 1
- 8 TUBE, AIR 17241-K3S-JA0Qty per bike: 1
- 9 TUBE, AIR 17241-K87-A00Qty per bike: 1
- 10 NECK, AIR TUBE 17251-K2Y-J00Qty per bike: 1
- 10 NECK, AIR TUBE 17251-K87-A00Qty per bike: 1
- 11 BAND, MUFFLER (SILENCER) BOX 17255-K2Y-J70Qty per bike: 1
- 12 TUBE, CRANKCASE SET BREATHER 17265-K87-A00Qty per bike: 1
- 13 BOX, MUFFLER (SILENCER) 17311-K87-A00Qty per bike: 1
- 14 CAP, DRAIN TUBE 17370-419-700Qty per bike: 1
- 15 CLIP, DRAIN TUBE 17371-174-670Qty per bike: 1
- 16 CLIP, TUBE 17724-102-700Qty per bike: 1
- 17 RUBBER, SIDE COVER 83551-376-000Qty per bike: 4
- 18 RUBBER, SIDE COVER A 83601-KVN-900Qty per bike: 2
- 19 NUT, MOUNTING (6 mm) 84601-HC4-000Qty per bike: 2
- 20 BOLT, FLANGE, 6 mm 90109-KZZ-900Qty per bike: 2
- 21 SCREW, 6x13 90121-K87-A00Qty per bike: 1
- 22 CLIP, BREATHER TUBE LOCK, 16 mm 90646-657-000Qty per bike: 1
- 23 SCREW, 4x35 93500-04035-0GQty per bike: 1
- 24 SCREW, 5x25 93500-05025-0GQty per bike: 1
- 25 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 3
- 26 BAND, HOSE (D12) 95002-41200-08Qty per bike: 2
- 27 HOSE, RUBBER, 8x12x390 95003-23039-60Qty per bike: 1
