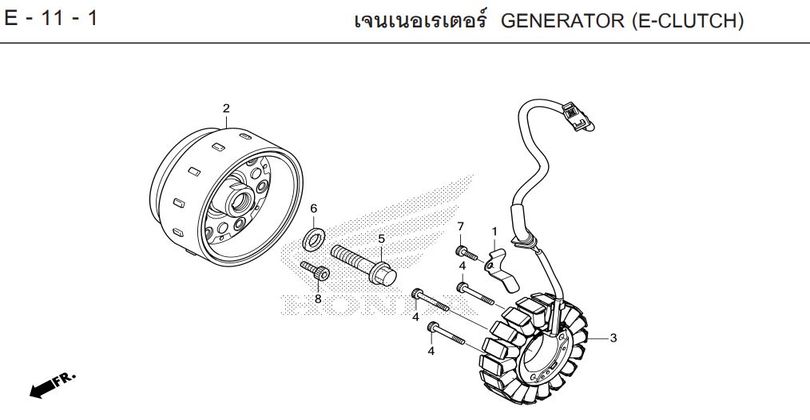

REBEL 300 2025 · E-11-1 11-1 GENERATOR (E-CLUTCH)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11-1
- 1 HOLDER, AIR INTAKE VALVE 31101-K1T-E10Qty per bike: 1
- 2 FLYWHEEL 31110-K2Y-J01Qty per bike: 1
- 3 COIL, STATOR 31120-K2Y-J01Qty per bike: 1
- 4 BOLT, 6x30 90001-K0A-DB0Qty per bike: 3
- 5 BOLT, FLANGE, 12x50 90023-KYJ-900Qty per bike: 1
- 6 WASHER, 12.5x30x5 90401-KCY-670Qty per bike: 1
- 7 BOLT 6X14 96600-06014-00Qty per bike: 1
- 8 BOLT, 8x20 96600-08020-10Qty per bike: 6
