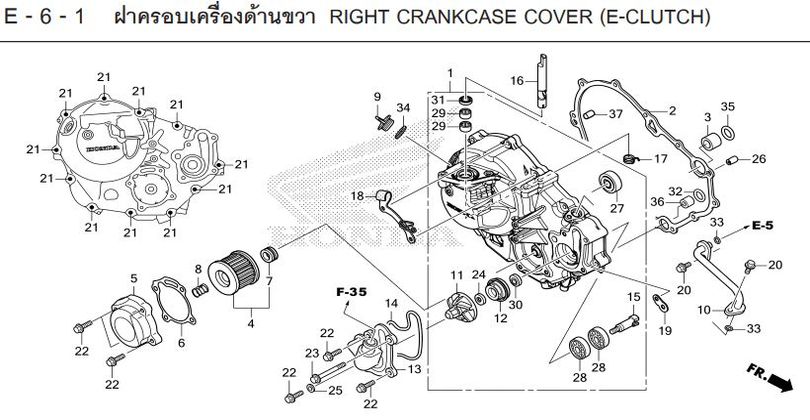

REBEL 300 2025 · E-6-1 6-1 RIGHT CRANKCASE COVER (E-CLUTCH)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-6-1
- 1 COVER SET, RIGHT CRANKCASE 11300-K2Y-J70Qty per bike: 1
- 2 GASKET, RIGHT CRANKCASE COVER 11394-K87-A30Qty per bike: 1
- 3 COLLAR, 18 mm 15326-KT7-000Qty per bike: 1
- 4 OIL FILTER ELEMENT SET 15410-K0A-DB1Qty per bike: 1
- 5 COVER, OIL FILTER 15411-K0A-EB0Qty per bike: 1
- 6 GASKET, OIL FILTER COVER 15412-KYJ-901Qty per bike: 1
- 7 RUBBER, OIL FILTER ELEMENT 15413-MC8-000Qty per bike: 1
- 8 SPRING, OIL FILTER ELEMENT 15414-KF0-000Qty per bike: 1
- 9 CAP, OIL FILLER 15611-KA4-710Qty per bike: 1
- 10 HOSE, WATER 19120-K0A-DB0Qty per bike: 1
- 11 IMPELLER, WATER PUMP 19215-KGH-900Qty per bike: 1
- 12 SEAL, WATER PUMP 19217-P72-013Qty per bike: 1
- 13 COVER, WATER PUMP 19220-K0A-EB0Qty per bike: 1
- 14 GASKET, WATER PUMP COVER 19226-KYJ-710Qty per bike: 1
- 15 SHAFT, WATER PUMP 19241-KZZ-D20Qty per bike: 1
- 16 ARM, CLUTCH LIFTER 22814-K2Y-J70Qty per bike: 1
- 17 SPRING, CLUTCH PRESSURE 22815-K2Y-J70Qty per bike: 1
- 18 CABLE, MOTOR 22820-K2Y-J70Qty per bike: 1
- 19 STAY, WIRE HARNESS 32157-K2Y-J00Qty per bike: 1
- 20 BOLT, FLANGE, 6x16 90010-KYJ-900Qty per bike: 2
- 21 BOLT, FLANGE, 6x35 90012-K64-N00Qty per bike: 11
- 22 BOLT, FLANGE, 6x25 90012-KYJ-900Qty per bike: 7
- 23 BOLT, FLANGE, 6x60 90015-KYJ-900Qty per bike: 1
- 24 WASHER, 7x13x1.2 90423-KW6-900Qty per bike: 1
- 25 WASHER, SEALING, 6.5 mm 90463-ML7-000Qty per bike: 1
- 26 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 1
- 27 BEARING, RADIAL BALL, SPECIAL, 6001U 91009-KYJ-711Qty per bike: 1
- 28 BEARING, RADIAL BALL, 6001 91015-KYJ-711Qty per bike: 2
- 28 BEARING, RADIAL BALL, 6001 96100-60013-00Qty per bike: 2
- 29 BEARING, NEEDLE ROLLER, 12x16x10 91021-MKS-E01Qty per bike: 2
- 29 BEARING, NEEDLE ROLLER, 12x16x10 91022-KYJ-711Qty per bike: 2
- 30 OIL SEAL, 12x26x5 91202-KTW-901Qty per bike: 1
- 31 OIL SEAL, 12x18x5 91204-KK0-003Qty per bike: 1
- 32 O-RING, 11.8x1.9 91301-KYJ-710Qty per bike: 1
- 33 O-RING, 9.8x2.4 91302-KYJ-710Qty per bike: 2
- 34 O-RING, 18x3 91307-035-000Qty per bike: 1
- 35 O-RING, 17.8x1.9 91322-K0A-DB0Qty per bike: 1
- 36 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 1
- 37 PIN B, DOWEL, 8x14 94302-08140Qty per bike: 1
